Digital Bo-mb Calorimeter

About Digital Bo-mb Calorimeter

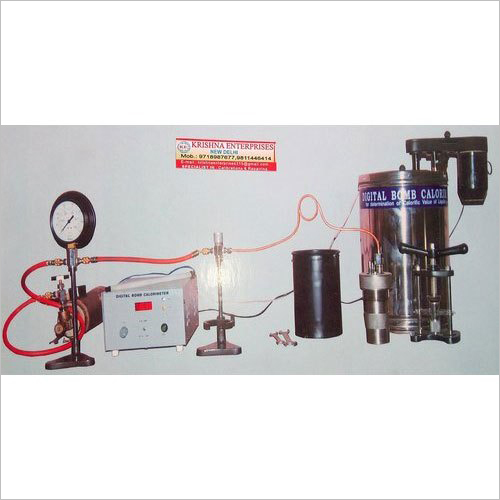

SPECIFICATION: Used for determination of combustion of heat of calorific value of the fuel & other organic material. Designed as per specification of Institute of Petroleum BS 1016 standard IS no. 1350/1966. Bomb Calorimeter Apparatus provide a simple and inexpensive method for determination of heat of combustion of organic matter and the calorific value of solid & liquid fuel. The outfit supplied is complete for analysis as per the method recommended by British Standard Institution. All parts of the outfit have been finished and tested according to the specification laid down by Institute of petroleum and British Standard Institute. It comes with all essential accessories like, Bomb, Calorimeter vessel with bomb support, water jacket, stirrer, Automatic Microprocessor unit etc. TESTING OF BOMB Each Bomb is tested before it leave the factory in accordance with requirements of the institutes of petroleum (I.P.12/63T Appendix 1)and works certificate is issued with each Bomb . This certificate gives the results of hydraulic testing under a pressure no 300 atmospheres (4400p.s.i) maintained for a period of ten minutes without sign leakage. The maximum deformation must not exceed the specified limits. CALORIMETER VESSEL The vessel is made of copper and is chromium plated or S.S. includes a Bomb Support that Ensures proper positioning of Bomb in the vessel. WATER JACKET The water container of jacket is made of copper and is chromium plated both inside outside or S.S. The top is closed by an ebonite cover. A terminal block is fitted to the top container so that connection can be made from the control. OFFSET STIRRER The stirring mechanism supplied gives sufficient turbulence for effective stirring whilst no heat imparted to the calorimeter water. It consists of an impeller stirrer driven at a constant speed of approximately 800 r.p.m. The offset arrangement where by the motor drives the impeller via a bell precludes any possibility of heat transference between motor and calorimeter vessel contents.
